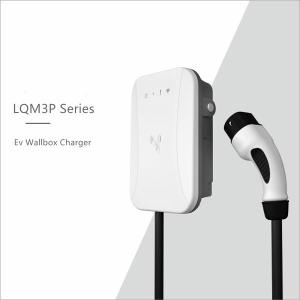

Lowest price Electric Car Charger 32a wall-mounted ev charging station wifi
We do mostly include type 1, type 2, one phase, three phase, level 2 voltage, 16A, 32A, 40A current, 3.5kw, 7kw, 10kw, 11kw, 22kw charging station of SAE J1172 and IEC 62196-2 standards for home use(residential) and commercial use which cover most market needs in most countries.
As a manufacturer of ev charging stations, to survive in this fierce market, our products are supposed to last long, to be safe,reliable, affordable and easy to use for everyone so we take quality, safty, stability, price, service and supports to our customers of great importance. Meanwhile, startups, small businesses and large corporates are all welcomed at Lekol. We’re able to produce large quantity in the same time with the flexibility to do customize designs, logos and colors, samples and trial ordersetc to boost your business and brand growth.
Feature
UL Listed EV Car Charger SAE J1772 Standar Type 1 Level 2 32a 40a 7kw 10kw Electric Car Charger EV Wallbox Charging Station for US Canada With Wifi APP Level 2, 32a/40amp available in 7kw and 10kw
Specification
| Charging Connector/ plug type | IEC62196-2 /Type 2 | SAEJ1772 /Type 1 |
| AC Power input rating | 1 phase 220V±15% | | |
| AC Power Output Rating | 3.5KW /16A | 11KW /16A | 3.5KW/16A |
| 7KW/32A | 22KW/32A | 7KW/32A |
| N/A | 43KW/63A | 10KW.40A |
| Rated Frequency | 50/60HZ |
| User interface & control |
| Charging control | Plug and charge √ | RFID card √ | CMS operate √ | |
| Display Screen | 4.3inch LCD screen |
| Wifi connection | Support √ | OCPP Protocol | 1.6J √ | 2.0.1 √ |
| Ethernet Interface | LAN(RJ-45) √ | APP interface | Support √ | |
| Environmental |
| Storage Temperature | -40 ~ 75℃ | Operating Temperature | -30 ~ 55℃ |
| Operating Humidity | Up tp 95%, non-condensing | Altitude | ≤2000m |
| Cooling Method | Natural Cooling | | |
| Protection |
| Over Voltage Protection | | Under Voltage Protection | |
| Over Load Protection | | Short Circuit Protection | |
| Earth Leakage Protection | | Ground Protection | |
| Over-temp Protection | | Surge Protection | |
| | | Protection ratings | |
| Wallbox Charger Mechanical |
| Dimension(H×W×D,mm) | 410×260×164 | Weight | 1 phase :9kg 3 phase:12kg |
| Charging Cable Length | 5m or 7.5m or customized | Enclosure Material | Front-panel: Tempered Glass, Back-cover: Plate Metal |
| LQM3T Mounting Pole(Optional) |
| Dimension(H×W×D,mm) | 1400×200×100 | Weight | ＜8kg |
| Enclosure Material | Metal | |
F.A.Q.
| Can I order some samples? How long? |
| A: Yes, and usually 7-10 days to production and 7-10 days to express. |
| How long to fully charge a car? |
| A: To know how long to charge a car, you need to know the OBC(on board charger) power of the car, the car battery capacity, the charger power. The hours to fully charge a car =battery kw.h/obc or charger power the lower one. For e.g, the battery is 40kw.h, obc is 7kw, charger is 22kw, the 40/7=5.7hours. If the obc is 22kw, then 40/22=1.8hours. |
| Are you Trading Company or manufacturer? |
| A: We are professional EV charger manufacturer. |
